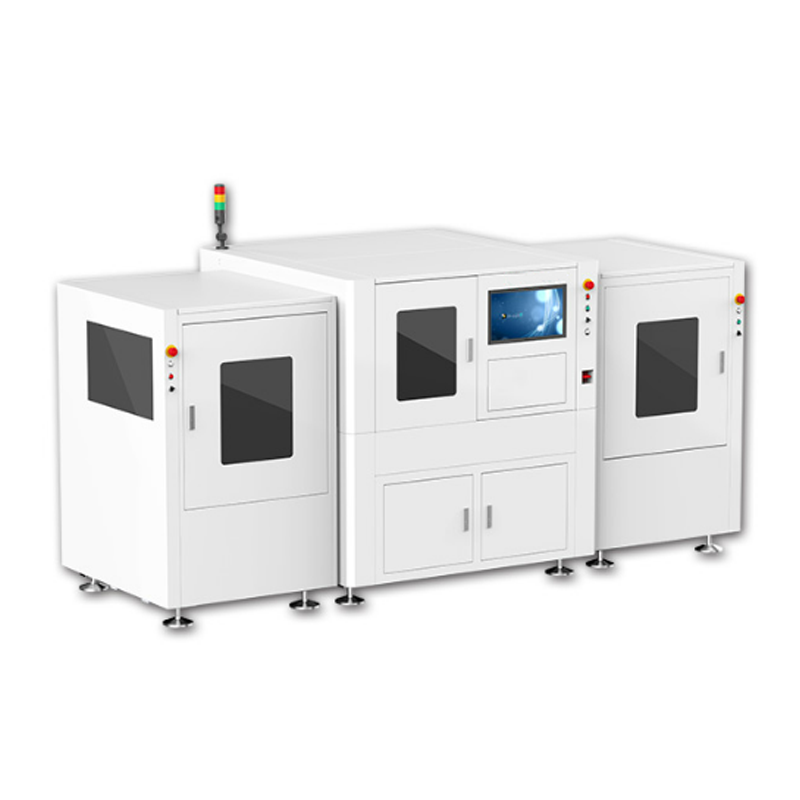

全自動在線激光打標 SP系列

設備型號/Model

  Sp150

重復定位精度/ Repeat positioning accuracy

  ±20um

定位系統/Positioning system

  mark視覺定位/MARK Positioning

條碼檢測系統/Code detection system

  CCD在線檢測/CCD Online Detection

基板最小尺寸/Minimum size of product

  50*50mm

基板**尺寸/Maximum size of product

  650*550mm

基板通過高度/Passing height

  <25mm

薄板防翹壓板系統
Anti warping pressing plate system

  支撐平臺/上下夾邊/Support(Upper and Lower Splint)

載板傳輸方向/Transfer direction

  L-R

工作方式/Operation mode

  單激光頭

刻印對象/種類
Laser
object/
type

文字/Character

  英文大小寫,、數字,、片假名、平假名,、漢字,、符號、用戶保存文字(可設定50種)
  English Uppercase Lowercase,、Figure,、Katakana、Chinese Chatacters,、Symbol,、User Save Text(Up to 50 Types)

條形碼/Bar Code

  Code39、Code128,、ITF,、NW-7、JAN(EAN)、UPC

二維碼/QR Code

  QR碼,、QR微型碼,、IQR碼、數據矩陣,、GS1數據矩陣/QR Code,、Micro QR Code、IQR Code,、Data Matrix,、GS1 Data Matrix

圖形數據/Graphic Data

  VEC*4、DXF,、BMP,、HPGL、JPEG,、AI,、EPS

煙霧處理方式/Smoke treatment method

  自動煙霧凈化系統/Automatic Smoke Purification System

軟件/Software

軟件界面/Software interface

  中英文優化界面

防呆功能/Poka-yoke Function

  反向、反面,、錯料等自動識別

選擇性打碼/Selective Printing

  識別BAD MARK,不良自動跳過

條碼數據來源/Barcode data source

  Shopflow,、MES、IMS,、PMS,、數據庫、U盤,，本機設置條碼原則,、數字、時間流水號
Shopflow,、MES,、IMS、PMS,、database,、USBflash disk.This machine sets the bar code rule\figure\Time serial number

系統連接功能/System connection function

  可連接Shopflow、MES,、IMS,、PMS、Mapping,、EAP系統,，全自動化生產
  Can connect SHOPFLOW,MES,IMS,PMS,Mapping,EAP and othe management systems,Fully automated production

資料庫/Database

  每個Model均可存檔，再次生成時直接調用/Each Model can be archived,directly tunde when generated again

刻印角度/Engraving Angle

  0~360°

   其他/0thers

電壓/Voltage

  220V50/60Hz

氣源/Gas source

  20.5MPa

環境要求/Environmental Requirement

  5~40℃,30~80RH

設備功率/Safety Precautions

  3.0KVA

設備尺寸/Equipment size

  3450*1550*1600mm(L/W/H)

設備重量/Equipment weight

  1850kg

   激光規格/Laser Specification

激光類型/Laser type

UV

GR

激光波長/Laser wavelength

355nm

532nm

激光等級/Laser level

Class4

Class4

激光功率/Laser power

3W/5W/10WV

10W

激光點徑/Laser spot diameter

0.04mm

0.06mm

激光冷卻方式/Laser cooling mode

水冷Water-cooling

水冷Water-cooling
